When Is the Best Time to Install Ducted Air Conditioning?

By the team at KYNEX Air Conditioning & Trades · ARC Refrigerant Trading Authorisation AU52887 · Updated July 2026

The best place to install a split-system air conditioner is high on a central internal wall — around 2.1 to 2.4 metres up — where the airflow can travel the length of the room without hitting furniture, direct sunlight or a doorway, with the outdoor unit as close behind it as possible in a shaded, well-ventilated spot away from your neighbour’s bedroom window. Get those two positions right and the same unit will cool better, run cheaper and last longer than an identical one installed in the wrong place.

TL;DR: Indoors: high, central, on an external-facing wall if you can (shorter pipe run = cheaper install), never in direct sun, never blowing straight at a bed or couch, with clear space above and around the unit. Outdoors: shaded but ventilated, on solid ground or proper brackets, with legal condensate drainage and enough distance from neighbours to pass Sydney’s night-time noise rules. If you’re cooling most of the house rather than one or two rooms, it may be time to compare a whole-home option — ducted air conditioning installation in Sydney often works out better value at three or more rooms, and we cover that decision below.

After ten-plus years and more than 2,000 installations across Sydney’s apartments, terraces and freestanding homes, we can tell you the placement conversation is where good installs are won or lost. The unit brand matters less than people think. Where it goes matters more than almost anything.

Where should the indoor unit go?

Think of the indoor head as a fan that needs a clear runway. Everything about placement follows from that.

Height: 2.1–2.4 metres up the wall. Cold air falls. Mounting the unit high lets cool air wash down and across the room evenly. Most manufacturers also require clearance above the unit — typically at least 15 centimetres from the ceiling — so it can draw air in through the top. Squeeze it against the cornice and you choke it.

Position: central on the wall, long axis of the room. The airflow should run down the longest dimension of the room. In a typical Sydney living room, that means the middle of the long wall, not tucked into a corner where half the throw hits the adjacent wall and bounces.

Avoid direct sunlight on the unit. The indoor head has a temperature sensor. If afternoon western sun lands on it — a daily event in west-facing rooms from Parramatta to Penrith — the unit thinks the room is hotter than it is and overworks. Keep it off walls that cop direct sun through nearby glass.

Don’t aim it at where people sit or sleep. A unit blowing directly onto a bed feels great for ten minutes and miserable by 3am. In bedrooms, mount it to the side of the bed or on the wall above the bedhead so air travels across the room rather than down onto sleepers. In living rooms, keep the main airflow path off the couch.

Keep it away from heat sources and doorways. Above a TV, near the kitchen, or opposite an often-open door all confuse the sensor or dump your cooled air into the hallway.

Think about the wall itself. An external wall directly opposite a good outdoor unit position lets your installer do a “back-to-back” install — indoor and outdoor units on either side of the same wall with a short pipe run. It’s the cheapest, cleanest configuration, and the reason quotes for the same unit can differ so much between homes. We’ve explained the difference between back-to-back and standard aircon installation in Sydney if you want to know which one your room allows.

One real example: a Dulwich Hill customer called us because her two-year-old unit “never cooled the room.” The previous installer had mounted it in a corner above a bookshelf, blowing straight into the side of a wardrobe two metres away. We moved it to the centre of the long wall — same unit, nothing else changed — and the room cooled evenly for the first time. Placement was the whole problem.

Where should the outdoor unit go?

The outdoor unit (the condenser) does the hard work of dumping heat, and it has three enemies: poor airflow, trapped heat, and angry neighbours.

Ventilated first, shaded second. A shaded spot helps efficiency, but airflow matters more. The unit needs clear space around it — as a rule of thumb, keep the manufacturer’s stated clearances, which are typically at least 10–30 cm at the sides and rear and much more in front of the fan. Boxing it into a tight side passage or behind a solid fence forces it to breathe its own hot exhaust, and efficiency falls off a cliff on 35-degree days.

Solid, level mounting. A concrete pad or polymer slab on the ground, or proper wall brackets rated for the unit’s weight. Wobbly mounts turn into vibration, and vibration turns into noise complaints.

Mind the noise rules. In NSW, an air conditioner generally shouldn’t be audible inside a neighbour’s habitable rooms during night-time hours — which makes the position of your condenser relative to the neighbour’s bedroom window a legal question, not just a courtesy. This catches out a lot of terrace and duplex owners where side setbacks are a metre or less. We’ve written detailed guides on the best outdoor unit locations to avoid neighbour noise complaints in Sydney and Sydney councils’ air conditioner noise regulations — read both before you settle on a spot near a boundary.

Plan the condensate drain before anyone drills. The indoor unit produces water whenever it cools — a lot of it in Sydney’s humid Januaries. That water needs a gravity path to a legal drainage point. On balconies and in strata buildings this is often the hardest constraint of the whole job, and it’s the one cheap installers most often botch.

Coastal homes: ask about corrosion protection. From Bondi to Cronulla, salt air eats standard condenser coils. If you’re within a kilometre or two of the ocean, ask your installer about units with anti-corrosion (“blue fin” style) coil coatings. It’s a small spec detail that adds years of life.

Strata and apartments: approval before placement. In most Sydney strata buildings, the outdoor unit position needs by-law approval before installation. The best technical spot is irrelevant if the owners corporation won’t approve it, so run the two questions together.

Which placements should you refuse outright?

A few positions come up again and again in quotes from less careful installers. Push back on all of them:

Indoor unit in a corner or over a doorway. Dead airflow, cooled air escaping into the hall.
Indoor unit hard against the ceiling. Starved of intake air; many units derate or fault.
Outdoor unit in a sealed courtyard or enclosed side passage. It recirculates its own hot air and struggles exactly when you need it most.
Outdoor unit under a bedroom window — yours or the neighbour’s. Even quiet modern units hum at night.
Outdoor unit in full western sun on a dark wall with no clearance. Western Sydney’s 40-degree afternoons are brutal on condensers; heat-soaked positions cost you capacity on the worst days.
Any position with an uphill drain run “solved” by a cheap pump nobody mentioned. Condensate pumps have their place, but they should be specified openly on the quote, not discovered later.

When is ducted air conditioning a better choice than more split systems?

Here’s the honest fork in the road. If you’re placing one split system in a bedroom or living area, everything above is your answer. But if you’re planning splits in three, four or five rooms, stop and compare the whole-home option first — because at that scale, ducted air conditioning for homes in Sydney often wins on both looks and lifetime value.

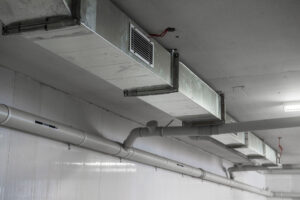

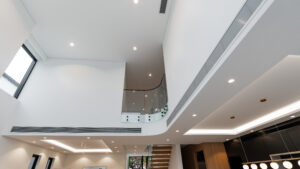

A ducted system hides one central unit in the roof space and delivers air through ceiling vents, with zoning that lets you cool only the rooms you’re using. One outdoor unit instead of several, no wall units in any room, and multi-zone control from a single panel. The trade-offs are a bigger upfront project — ductwork installation needs adequate roof space, which rules out some apartments and low-pitch roofs — and a higher initial cost than a single split.

The numbers are the deciding factor for most families, so compare them properly: our guide to ducted air conditioning installation prices in Sydney breaks down what drives the cost, and how much a ducted air conditioner costs to install in Sydney covers typical price ranges by home size. As a rough rule from our own quoting: one or two rooms, split systems win; four or more, reverse-cycle ducted usually wins; three rooms is the genuine toss-up where a proper site measure decides it.

Nearly all modern systems — split or ducted — are reverse-cycle, meaning the same unit heats in winter. So the placement and sizing decisions you make now are a year-round comfort decision, not just a summer one.

How KYNEX Air Conditioning & Trades can help

Placement is exactly the kind of decision that’s easy to get right with a tape measure on site and easy to get wrong over the phone. That’s why every KYNEX quote starts with a free in-home measure: we check the wall you have in mind, the roof or side access, the drainage fall, the switchboard, and the boundary distances that decide the noise question — before we give you a fixed, itemised price.

We’re licensed ducted air conditioning contractors and split-system installers in one team — ARC Refrigerant Trading Authorisation AU52887, 10+ years, over 2,000 Sydney homes and businesses, working with Daikin, Fujitsu, Mitsubishi Heavy Industries and other major brands, with a 5-year labour warranty on top of the manufacturer’s. Because we install both system types (plus commercial systems for offices and shops), we’ve got no incentive to push you toward one — the site measure and your budget decide, and we’ll show you the ducted-vs-split comparison for your actual floor plan. Our split system installation service page covers what a compliant install includes, or you can book a free measure and quote and we’ll mark the best positions on your walls before you commit to anything.

Independent reputation check, as always: our Google Business profile shows a 4.5-star rating across 112 public reviews at the time of writing, all verifiable on Google Maps. Read the critical ones too — how a company handles its worst day matters more than its best.

Frequently asked questions

How high should a split-system air conditioner be mounted?

Around 2.1 to 2.4 metres from the floor, with at least the manufacturer’s stated clearance (typically 15 cm or more) between the top of the unit and the ceiling so it can draw in air properly.

Should a split system go above the bed?

Above the bedhead is fine; blowing directly down onto the bed is not. Position the unit so the airflow travels across the room rather than onto sleepers — to the side of the bed is usually the most comfortable placement.

Does the outdoor unit need to be in the shade?

Shade helps, but ventilation matters more. A shaded spot with poor airflow performs worse than a sunny spot with clear space around it. Avoid enclosed courtyards, tight side passages and heat-soaked west-facing walls with no clearance.

How far can the outdoor unit be from the indoor unit?

Most residential split systems allow pipe runs of roughly 15 metres or more (check your model’s specs), but every extra metre adds cost and slightly reduces efficiency. The closer the two units, the better — a back-to-back install is the ideal.

Do I need approval to place an outdoor unit in a Sydney apartment?

In most strata buildings, yes — the outdoor unit’s position on a balcony or external wall typically needs owners corporation approval, and the condensate drainage must comply with the building’s rules. Sort approval and placement together, before booking the install.
