What Causes an E7 Error Code on a Split System Air Conditioner?
What causes E7 error code on split system air conditioner? In most real-world cases, the E7 error code points to a problem around the outdoor unit, especially an E7 outdoor unit fan motor fault, a defective fan motor connector, a faulty harness between fan motor and PCB, or another outdoor unit electrical fault. The exact meaning can change by brand, but the pattern is the same: the split system sees something unsafe and stops to protect itself.
Local Sydney angle
Interactive troubleshooting section
Built for mobile readability
Quick verdict

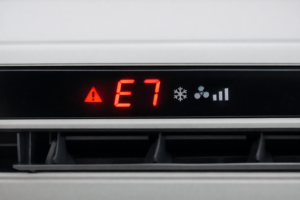

When a split system air conditioner E7 error appears, the biggest mistake is assuming the whole unit needs replacing. On service calls, E7 is often caused by an outdoor fan that is not rotating properly, a wiring or harness issue between the fan motor and the PCB, or a board-side signal fault.
A common Sydney example is a unit that runs fine in mild weather, then suddenly throws E7 on a hot, still afternoon. That is usually when the outdoor unit is under real stress. A weak fan motor, blocked blade, or tired connector can finally show itself.
Urgency level
Important because cooling or heating can stop, and ongoing use may stress other outdoor components.
DIY-friendly?
You can do safe first checks, but fan motor diagnosis and PCB testing should be left to a split system service technician.
Best next move
Do one safe power reset, inspect the outdoor unit for visible blockage, then book a local split system repair E7 inspection if the code comes back.
What does an E7 error code split system air conditioner warning actually mean?
The first impression is never subtle. Your split system stops cooling, the display flashes E7 error code, and suddenly the room feels warmer than it should. Most people go straight to a search like how to fix E7 error code air conditioner or air conditioning repair near me E7. That makes sense. The code looks small, but it creates a lot of worry.
In plain terms, E7 usually means the outdoor unit has hit a fault it does not trust. On many systems, that points to outdoor fan motor system malfunction, fan motor failure E7, PCB to fan motor wiring fault, or another split AC fault code cause tied to the outdoor side. In a few models, E7 can also cover a communication or signal issue.
This guide uses KYC Air Conditioning Sydney as the EEAT base and keeps the advice practical for Sydney homes, apartments, and small offices using reverse cycle and ductless split systems.
E7 error code split system air conditioner: the most common causes
What is “in the box” for this fault?
There is no product box here, but there is a clear group of parts that usually matter when what causes E7 error code on split system comes up:
Fan blade and guard
PCB / control board
Motor harness
Connector terminals
Outdoor casing and airflow path
Target audience
- Homeowners with reverse cycle split system E7
- Apartment residents with ductless split system E7 error
- Anyone with split system AC not cooling E7
- Property managers looking for a quick, calm explanation before booking a repair
Main causes behind an E7 split system fault
1. Outdoor fan motor fault
The most common pattern is simple: the outdoor fan is not spinning as it should, sending the wrong signal, or overheating under load.
2. Harness or connector issue
A defective fan motor connector or faulty harness between fan motor and PCB can make the board think the motor has failed.
3. Physical obstruction
A foreign object stuck in outdoor fan can stop the blade rotating normally and trigger an outdoor unit malfunction code.
Why split system design makes the outdoor unit so important
A split system looks simple from the living room. Quiet wall unit inside, metal box outside. But the outdoor unit does the heavy lifting. It throws heat out, relies on steady airflow, and depends on the fan motor, board, and wiring all working in sync. If that fails, the indoor unit can look fine while the real problem sits outside.
Visual appeal
The display only gives you a tiny E7. It does not tell you whether the issue is the fan, the harness, or the board.
Materials and construction
Outdoor units face dust, heat, leaves, moisture, and in some suburbs, salty air. Even a solid system can develop an aircon outdoor unit stopped working complaint over time.
Durability observations
Repeated hot-weather stress is when weak connectors, dirty fan paths, and tired motors often show themselves.
One pattern we keep seeing is this: the system behaves well for months, then throws E7 during the first hot spell when it has to work harder. That does not always mean the system is “bad.” It often means a hidden outdoor weakness only appears under real demand.
How to fix E7 error code on a split system: the performance clues that matter
4.1 Core functionality
The outdoor unit fan exists for one big reason: it helps move heat. If it cannot spin properly, or if the board cannot read its signal, the unit may shut down. That leads to the classic complaints: split system AC not cooling E7, warm air indoors, short cycling, or a system that starts then stops.
Real-world signs
- Outdoor fan not rotating or rotating oddly
- Cooling starts weakly, then drops out
- E7 returns after a reset
- The indoor unit powers on, but performance is poor
What a technician usually checks
- Fan motor signal and response
- Connector fit and harness continuity
- PCB output to fan motor
- Physical obstruction in the blade path
4.2 Key performance categories
Fan motor health
This is often the main cause behind an E7 outdoor unit fan motor fault.
Wiring integrity
A PCB to fan motor wiring fault can mimic a failed motor, even when the motor itself is not the real issue.
Outdoor airflow
A blocked, jammed, or dirty outdoor section can push the system into protection mode.
Quick interactive E7 triage
Tap the symptom that sounds most like your situation.
What daily use feels like when a split system fault code E7 appears
The hardest part about E7 is that it feels sudden. A family comes home expecting cool air, but the room stays stuffy. A small office notices the wall unit is on, yet the comfort is gone. That mismatch makes people think the thermostat or remote is the problem when the real issue is outside.
Setup and installation
A clean installation helps. Poor cable routing, stressed connectors, weak outdoor placement, or vibration can make later HVAC E7 diagnosis harder.
Daily usage
Most users only see the fault when the unit is under heavier load. That is why people often say, “It was fine yesterday.”
My rule is simple: an E7 error reset split system is a test, not a repair. If it clears once and stays clear, great. If it comes back, the system is trying to tell you something useful.
How E7 stacks up against other split AC fault code causes
| Fault pattern | What it usually points to | How E7 compares |
|---|---|---|
| Fan-related shutdown | Outdoor fan motor replacement, fan motor diagnosis, or airflow issue | E7 often sits here first |
| Communication or signal error | Board, connector, or wiring issue | Some models also use E7 in this way |
| Sensor-based protection | Outdoor reading is missing or wrong | Less common in split-system E7 than fan-side faults |
| General no-cooling complaint | Wide range of causes, including refrigerant, board, and compressor issues | E7 is more targeted than a vague “not cooling” symptom |
This is why online searches for e7 error code daikin, gree mini split e7 error code, haier inverter ac e7 error code, tosot e7 error code, and daikin ac e7 error code can produce different explanations. The smart move is to treat E7 as a brand-specific fault signal, not a universal one-size-fits-all answer.
What we liked and what annoys users about E7 troubleshooting
What we loved
- The system gives a clue instead of failing silently
- E7 often narrows the search toward the outdoor fan side
- It can stop bigger damage by forcing a shutdown early
Areas for improvement
- The exact e7 error code meaning changes by brand
- Generic web answers mix split systems with unrelated appliances
- Many users over-reset the unit instead of diagnosing the fault
Why newer split systems still need old-school diagnosis
New boards are smarter, but not magical. They can spot trouble faster, which is good, yet the real fix still comes from testing the outdoor side properly. A code can tell you where to start. It cannot tell you with certainty whether the fault is the motor, the harness, the PCB, or a physical obstruction.
In 2026, Sydney buyers are also more alert to after-sales support, install quality, and practical service response. That matters because with split systems, the long-term result depends on both the product and the quality of the diagnosis behind it.
Best for, skip if, and alternatives to consider
Best for
Owners who want a calm, accurate path from fault code to real answer without guessing or replacing random parts.
Skip if
You want a one-line answer that ignores model differences. E7 is not reliable when stripped of brand context.
Alternative to consider
If the system is old and E7 is part of a bigger pattern, compare repair versus replacement after a proper inspection.
Where to go next if your outdoor unit has stopped working
If your goal is to fix the system instead of guessing at the code, start with a local expert page that already covers E7 clearly:
What Does E7 Error Code Mean on My Air Conditioner?
For broader split system help, repairs, and Sydney-based advice, use the KYC homepage:
KYC Air Conditioning Sydney
Overall rating and bottom line
Overall rating
As a warning signal, E7 is useful. As a final answer, it is incomplete. The right response is one safe reset, one visual check, and then a proper split-system diagnosis if the issue returns.
Bottom line
What causes an E7 error code on a split system air conditioner? Most often, it is an outdoor fan motor fault, fan motor signal problem, fan obstruction, or wiring issue between the fan motor and PCB. In simple language, the outdoor unit is not behaving the way the system expects, so it stops to protect itself.
